Friday, February 24, 2023

,

Upgrading from API v2 to v3: What You Need to Know

The VirusTotal API is a versatile and powerful tool that can be utilized in so many ways. Although it is commonly used for threat intelligence enrichment and threat analysis, the potential uses are virtually limitless. The latest version, VirusTotal API v3, is continuously updated with new features to enhance its capabilities with every new release.

With this post we want to help you understand its potential and, in case you are a VT API veteran, help you migrate from API v2 to API v3 to unleash its full potential.

To simplify the process of adopting and migrating to VirusTotal API v3, we have updated the official documentation with a specific section dedicated to this purpose. We also created a GitHub repository with working examples. In the next few weeks we will host a webinar showing you cool use cases you can implement with VT API, so stay tuned!


Why use VT API v3?

The migration guide describes in detail most API v3 benefits, including:

  • Endpoints for all VirusTotal products and scanners. VT users can access all of VirusTotal’s tools through a single API, simplifying the integration process.
  • User and group management helping administrators to automate managing access and accounts, as well as tracking usage across your team.
  • Extra relevant information for file, URL, domain and IP reports. VT API v3 provides additional information for all file, URL, domain and IP reports, including metadata and context.
  • REST-based, with predictable, resource-oriented URLs. VirusTotal API v3 uses a RESTful architecture, following a standard set of design principles for building web services with HTTP methods accessed through predictable, resource-oriented URLs, making it easier to use and integrate with other tools.
  • MITRE related tactics and techniques seen in file behavior. API v3 provides information on TTPs used by malware samples, as defined by the MITRE ATT&CK framework. This helps understanding the potential impact of a sample and how to respond to any threats.
  • More extensive documentation and code examples based on the Python module. V3 has more extensive documentation and code examples which make it easier for users to get started with the API and integrate it into their workflows.

API v2-v3 Migration Guide

Our migration guide outlines the differences between VT API v2 and v3, touching on aspects such as data formats, available integration with other VT products and features, and what are the API Scripts and client libraries available for each one.

It also details the differences between v2 and v3 endpoints, including differences in requests and responses. The table below summarizes endpoint correspondence between v2 and v3:


One more thing

In addition to the examples provided in the GitHub repository, the official API documentation offers additional cool features.

First of all, it provides code examples for every endpoint! The 3 dots button shows a list of available programming languages you can get examples. Select any of them and the code is automatically updated to that language.

Additionally, the ‘Try It!’ button executes the request for you and shows the JSON result in the ‘RESPONSE’ section under the code snippet.


Conclusions

API v2 served VirusTotal users well for many years, but it lacks some features required to any modern professional API. Don’t panic, you can still continue using API v2 if you really have to. We want to make sure you understand the advantages of using v3 and provide you with everything needed to make v2 to v3 transition as smooth as possible.

Probably the main advantage is that API v3 is VirusTotal’s standard, and some day in the future we will have to sunset v2. Nevertheless, in v3 we make sure that every service and feature has its corresponding endpoint. That includes many functionalities not available in v2, like user and group management, threat landscape, Graphs or Private Scanning, among others. Moreover, API v3 provides extended data on VT reports for any observable!

We hope the extensive documentation and code examples will help you master API v3 very soon! If you have any suggestions or just want to share feedback, please feel free to reach out here.

Happy hunting!

Thursday, February 02, 2023

, , ,

Is malware abusing your infrastructure? Find out with VirusTotal!

Any organization’s infrastructure might inadvertently be abused by attackers as part of a malicious campaign. It is therefore important to monitor any suspicious activity. VirusTotal can help you identify these threats and improve your threat detection and protection capabilities. In this post we will first analyze different available search modifiers and then we will provide different templates to quickly deploy infrastructure monitoring rules.


Hunting for infrastructure abuses

VirusTotal Intelligence allows you to search VT’s extensive dataset for domains, URLs, IP addresses and files. You can find some examples on using search modifiers in our previous blog post.
You can use entity: domain or entity: url along parent_domain (entity:domain parent_domain:file.io or entity:url parent_domain:file.io) search modifiers to find VT details on your infrastructure. You can always adjust the results with the antivirus detection ratio (positives or p keyword).
For IP addresses we can use the ip search modifier, also valid for IP ranges:
The domain/URL/IP report shows the assigned category by antivirus vendors along with the detection ratio. One of the most interesting tabs is “Relations”, where we can check any suspicious samples communicating with it.
Indeed, we can use some additional modifiers to find networking entities having interesting relationships. We can also use them to immediately flag if there is any domain or IP in our infrastructure communicating with any suspicious file.
Search modifier Description
detected_communicating_files_count # of detected files contacting the given domain or IP address when executed in a sandbox
communicating_files_max_detections maximum # of detected files communicating with a given domain or IP address
detected_downloaded_files_count # of detected files downloaded by VirusTotal from a URL hosted under a given domain or an IP address
downloaded_files_max_detections maximum # of detected files downloaded by VirusTotal from a URL hosted under a given domain or an IP address
detected_referring_files_count # of detected files containing the given domain or IP address in their strings
referring_files_max_detections maximum # of detected files containing the given domain or IP address in their strings
detected_urls_count # of detected URLs hosted under a given domain or IP address
urls_max_detections maximum # of detected URLs hosted under a given domain or IP address

Files
The most generic (although noisy) way to find files potentially targeting your infrastructure is the static one checking files’ content. This returns any file matching your IP addresses, domains or URLs in its content’s strings. In this case it is not possible using IP ranges.
❗Please notice that the content search modifier can't be used in combination with the entity modifier in the same query.
This type of query is useful when malware’s infrastructure is not obfuscated and statically found in the sample, which is not common.

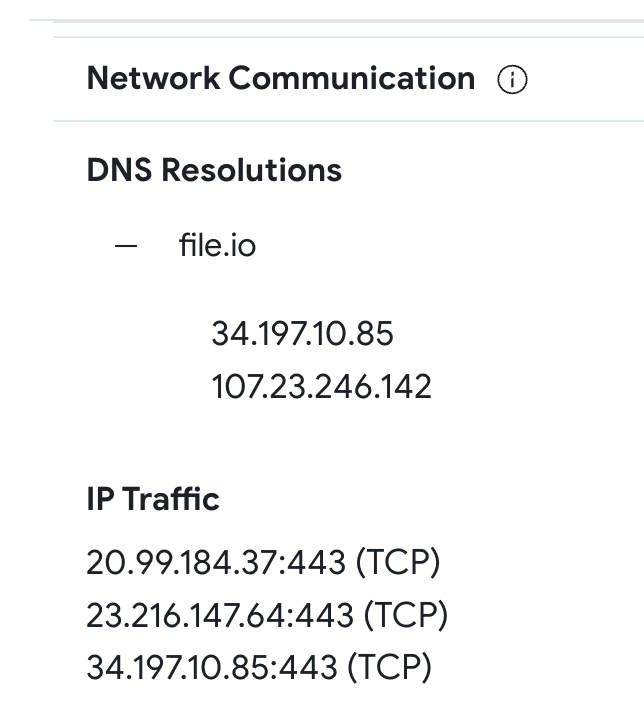

There is a better way through dynamic analysis. All samples in VirusTotal are detonated in several sandboxes, which produces valuable data on how it behaves dynamically. Many samples implement anti-sandboxing techniques, so it is not always possible to get all the details.
The best search modifier to find samples communicating with a given URL, domain or IP through sandbox detonation is behaviour_network:
The contacted_ip search modifier also allows specifying IP address ranges:
Besides dynamic execution, you can check if VirusTotal has ever seen any particular suspicious samples being downloaded from your infrastructure. For this you can use the “In the Wild” (itw) search modifier: entity:file itw:file.io p:1+

Do it yourself!
Let’s say you are interested in tracking fresh suspicious samples submitted to VirusTotal communicating your company’s infrastructure (in this case consisting of 2 IPs resolving to our file.io domain). The “first submission” (fs) search modifier gets us files submitted since december last year:
This query returns 4 files that are detected as malicious by at least 12 antivirus engines.
All samples work in the same way, let’s focus on the first one - 5dd5394ffb7b363a23ba93b7d78d626a133d39e4ea93486bbb8e150db6ff4757. In the Behavior tab -> Network Communication section, we confirm the file resolves “file.io” to one of the IP addresses used in our query.
The Content tab shows an encoded Powershell.
In short, this dropper downloads another sample from https://file[.]io/DseDcCxBoGyr, renames it as MicMute_0.1.8.4_Beta_Setup.exe and executes it.

Automated monitoring

We can automate monitoring our infrastructure in two ways.

1. Using the VT API
With VT API v3 you can use the Advanced corpus search endpoint to use VTI queries like the ones described above. This endpoint requires your premium API key and your URL Safe encoded VT Intelligence query. The example below uses CURL for the the previous query:
curl --request GET --url 'https://www.virustotal.com/api/v3/intelligence/search?query={entity%3Afile%20behaviour%5Fnetwork%3Afile%2Eio%20%28contacted%5Fip%3A107%2E23%2E246%2E142%20or%20contacted%5Fip%3A34%2E197%2E10%2E85%29%20p%3A10%2B%20fs%3A2022%2D12%2D01%2B}' --header 'x-apikey: <your API key>'
The result will be a JSON with the results of the query.
You can also use the official VirusTotal Python client library. The following is an example for the same query:
import "vt"

QUERY = "entity:file behaviour_network:file.io (contacted_ip:107.23.246.142 or contacted_ip:34.197.10.85) p:10+ fs:2022-12-01+"

with vt.Client(API_KEY) as client:
 it = client.iterator('/intelligence/search', params={"query": QUERY })
 for file_obj in it:
  print(f'{file_obj.id}')
Please note that queries using “In the Wild” (itw) search modifier cannot be translated (yet) to YARA rules. To automate these queries we encourage you to use the VirusTotal API.

2. Using YARA
YARA allows creating file matching rules based on textual or binary patterns. Each rule consists of a set of strings and a boolean condition. You can deploy Livehunt YARA rules in VirusTotal and get a notification every time a new submitted file matches your rules. Let’s learn how to create basic YARA rules for monitoring your infrastructure.
The first example is based on file content. It will match files containing any of the declared IP addresses, domains or URLs.
import "vt"

rule infrastructure_monitoring {

 meta:
  description = "Description of the logic of the use case and its goal."
  author = "VT Team"

 strings:
  // assets
  $ip1 = "X.X.X.X"
  $ip2 = "Y.Y.Y.Y"
  $url1 = "companyexampledomain.com/url?p=5"
  $url2 = "companyexampledomain.es/url2"
  $domain1 = "companyexampledomain.com"
  $domain2 = "companyexampledomain.es"

 condition:
  any of ($ip*,$domain*,$url*)
}
By its very nature YARA works only on static file properties, which would be limiting as we have discussed. Happily, we can use VirusTotal's custom YARA VT module, which extends the common capabilities of YARA to allow you to check sample behavior, metadata, signatures, submissions, etc. When it comes to network activity, this module exposes information about DNS resolutions, established IP connections, HTTP requests, and even SMTP traffic. The following is a list of the most interesting properties we can use for hunting:
  • vt.behaviour.dns_lookups: this field is a list of DNS resolutions performed by the sample. For each item or resolution in the list, it provides the hostname and the resolved IP address (resolved_ips). We could use this to detect if a sample dynamically tries to contact with a given domain, for example:
    dns_lookup.hostname contains "companyexampledomain.com"
  • vt.behaviour.ip_traffic: this field is a list of established IP connections and it provides the destination IP address, the port and the transport layer protocol (destination_ip, destination_port, transport_layer_protocol) for each connection.
    ip_traffic.destination_ip == "X.X.X.X"
  • vt.behaviour.http_conversations: this field is a list of HTTP requests performed by the sample. Every item in the list provides context information such as request URL, method and headers (url, request_method, request_headers), and response headers, status code and body filetype (response_headers, status_code, response_body_filetype).
    http_conversations.url contains "companyexampledomain.com/url?p=5"
  • vt.behaviour.smtp_conversations: this field is a list of SMTP requests. It provides many features for every item in the list such as the recipient and the sender (message_from, message_to, message_cc, message_bcc), email’s subject and body (subject, html_body, txt_body), and SMTP server related information such as the host name, IP address and port (hostname, destination_ip, destination_port) among others.
    smtp_conversations.hostname contains "companyexampledomain.com"
We can now replicate in YARA the search query we used to find samples dynamically communicating with certain IPs:
import "vt"

rule infrastructure_monitoring {

 meta:
  description = "Description of the logic of the use case and its goal."
  author = "VT Team"
  // assets
  ip1 = "34.197.10.85"
  ip2 = "107.23.246.142"

 condition:
  // Match only samples detected as malicious by more than 9 AVs
  vt.metadata.analysis_stats.malicious > 9 and (
   // Check the list of established IP connections
   for any ip_traffic in vt.behaviour.ip_traffic : (
    // Match samples communicating to any of my IP addresses
    ip_traffic.destination_ip == "34.197.10.85" or
    ip_traffic.destination_ip == "107.23.246.142"
   )
  )
}
Please note the above YARA also takes advantage of the VT module to check the minimum number of antivirus detections.
Unfortunately, ther's no easy way to check for IP ranges in YARA. We will cover more advanced cases in our next post on this topic. Additionally, the use of the VT module is limited to Livehunts, but we hope will be soon available for Retrohunts too.

Conclusions

As a takeaway material, we have prepared a YARA rule template you can use to monitor suspicious samples interacting with your infrastructure. You can edit and fine tune it based on your needs by removing conditions or adding new ones.
import "vt"

rule infrastructure_monitoring {

 meta:
  description = "Description of the logic of the use case and its goal."
  author = "VT Team"

 strings:
  // assets
  $ip1 = "X.X.X.X"
  $ip2 = "Y.Y.Y.Y"
  $url1 = "companyexampledomain.com/url?p=5"
  $url2 = "companyexampledomain.es/url2"
  $domain1 = "companyexampledomain.com"
  $domain2 = "companyexampledomain.es"

 condition:
  // First it checks for strings in sample content
  // This can be potentially noisy, you can consider comment this line
  any of them or

  // Match only samples detected as malicious by more than 10 AVs
  vt.metadata.analysis_stats.malicious > 10 and (
   // Check the list of DNS resolutions performed by the sample
   for any dns_lookup in vt.behaviour.dns_lookups : (
    // Match samples that perform DNS requests for any of my domains
    dns_lookup.hostname contains "companyexampledomain.com" or
    dns_lookup.hostname contains "companyexampledomain.es" or
    // Match samples that resolve to any of my IP addresses
    for any ip in dns_lookup.resolved_ips: (
     ip == "X.X.X.X" or
     ip == "Y.Y.Y.Y"
    )
   ) or

   // Check the list of established IP connections
   for any ip_traffic in vt.behaviour.ip_traffic : (
    // Match samples communicating to any of my IP addresses
    ip_traffic.destination_ip == "X.X.X.X" or
    ip_traffic.destination_ip == "Y.Y.Y.Y"
   ) or

   // Check the list of HTTP requests performed
   for any http_conversations in vt.behaviour.http_conversations : (
    // Match samples communicating to any of my IP addresses
    http_conversations.url contains "companyexampledomain.com/url?p=5" or
    http_conversations.url contains "companyexampledomain.es/url2"
   )
  )
}
❗Please note that YARA doesn’t allow you to implement 2 separate loops consuming the same list of objects.
VirusTotal helps you to automatically monitor and detect samples that target or make use of your network infrastructure. The examples above help you understand the most useful modifiers you can use, but please feel free to explore alternatives you find relevant to filter out noisy results. We recommend a first exploratory manual approach to make sure your searches provide accurate results. After that you can automate your searches using VT API v3, or use Livehunt for deploying YARA rules.
We hope you find this useful, and if you have any suggestions or just want to share feedback please feel free to reach out here. We will be back with a second post with more advanced cases.
Happy hunting!
